Item specifics
  • Software Version: OBD
  • Item Type: Engine Analyzer
  • Brand Name: NEXAS
  • Hardware Version: OBD
  • product: Nexlink NL102 Car & Truck Heavy 2 in 1
  • Nexlink NL102 warranty: Three year
  • Nexlink NL102 function 1: Battery power monitoring function
  • Nexlink NL102 function 2: Read, store and playback live O2 sensor test data
  • Nexlink NL102 function 3: Turn off Check Engine Light (MIL)
  • Nexlink NL102 function 4: Read, store and playback live O2 sensor test data
  • Nexlink NL102 Support protocols: OBD/EOBD+CAN J1578, J1939 and J1708
  • Nexlink NL102 Language: English, Spanish, Frence
  • Nexlink NL102 Special Features:: O2 Monitor Test / On Board Monitor test/ Compone
  • Nexlink NL102 User : Auto Workshop, Technician, and Car DIYer
Product Description

related



BST200_

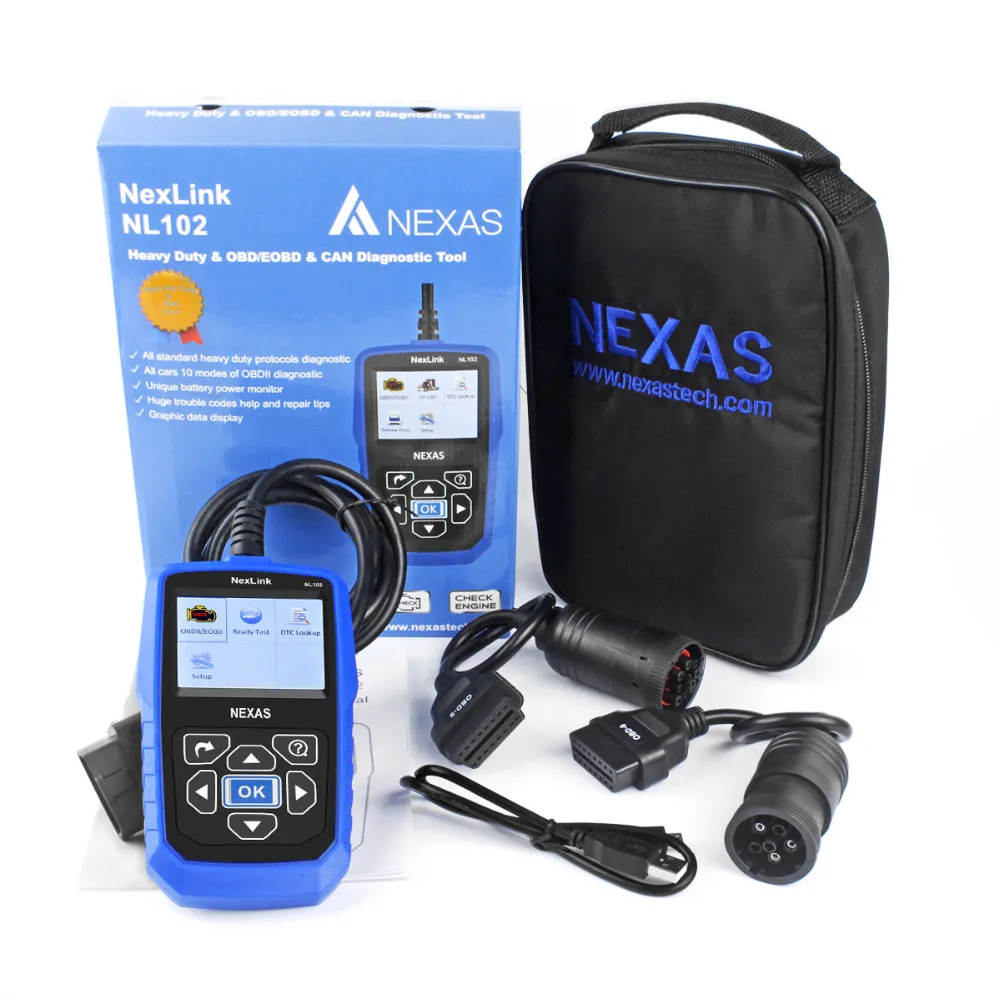

Newest Car & Truck Heavy 2 in 1 OBD2 Diagnostic Tools Automotive Scanner Scan Tool NL102 Same AL519+CR-HD Heavy Duty Scan Tool



Why Choose NexLINK NL102 Car Truck 2 in 1 Diagnostic Tool?

1. NexLINK NL102 = Cars and Trucks Scanner 2 in 1 with Battery Monitor

2. NexLINK NL102 Support Languages: English, French, Spanish,

3. NexLINK NL102 Support  6PIN, 9PIN (trucks), and 16PIN(cars & trucks) diagnostic connectors


NL102 Support heavy duty list:
warm notice: please check your car or truck work obd protocols incluidng NL102 support protocols or not before order, dear friend
it can work with after 2008 year truck which use 6pin, 9pin and 16pin cable connect.
NL102 for heavy duty list
IMG_2171





93241


description

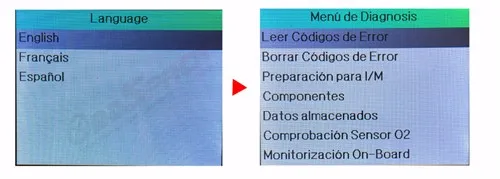

1. Languages: English, French, Spanish
Support 6PIN, 9PIN (trucks), and 16PIN(cars & trucks) diagnostic connectors
LANGUAGE

2. Vehicle Coverages:
Heavy duty trucks in compliance with standard protocols ( J1578, J1939 and J1708)

3. Support Truck Vehicles:
for Cummings, for Detroit, for Caterpillar, for Freightliner, for International, for Kenworth, for John Deere, forPeterbilt, for Sterling, for Mack, for Mecedes Benz, for VOLVO, for Scania, For ISUZU, for Brilliance and more diesel trucks;
HTB1wby7NpXXXXbFXXXXq6xXFXXXe

4. Support Truck Systems:
engine, transmission, instrument panel, drivetrain, braking system, suspension, ABS, ESP, EPS, fuel system and etc


5. Support Cars Vehicles:
American Car from 1996 up to now
European Car from 2001 up to now
Asian Car from 2008 up to now

6.System Functions:
Read codes,
erase codes,
I/M Readness,
Live data,
EVAP Test,
O2 sensor Test...etc


7. Car Scan Module

CAR SCAN

8. Truck Scan Module

Truck scan

9. Special Features: Troubleshooting tips guide

details



10. Features And Functions:

1, Work on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 on and latest – European, American and Asian

2, Uniquely featured with battery power monitoring function

3, Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000

4, Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time

5, Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific codes (P1, P3 and U1), and pending codes

6, Easily determine the cause of the Check Engine Light (MIL), and turn off Check Engine Light (MIL) by erasing the trouble codes and Monitors reset

7, Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions), and vehicle information (VIN, CIN and CVN)

8, Read, store and playback live O2 sensor test data

9, Read PCM live data stream, with graphic data display

10, Enhanced OBDII Mode 6

11, Multilingual menu and DTC definitions – English, Spanish and French, German, Italian, etc.





FAQ Area before order:

1. Vehicle Linking Error?

A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit). You need to do the following to check up:
Verify that the ignition is ON.
Check if the scan tool’s connector is securely connected to the vehicle’s DLC.
Verify that the vehicle is OBD2 compliant.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
Verify the control module is not defective.



2. Operating Error?

If the scan tool freezes, then an exception occurs or the vehicle’s ECU (Engine Control Unit) is too slow to respond to requests. You need to do the following to reset the tool:
Reset the scan tool.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.



3. Scan tool doesn’t power up?

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
Check if the scan tool’s connector is securely connected to the vehicle’s DLC;
Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
Check vehicle battery to make sure it is still good with at least 8.0 volts.


4. Where\'s Our vehilcle OBD Interface (Port) ?
HTB1g5zrOpXXXXbtXpXXq6xXFXXXI


5. What\'s Mean About OBD 16pin Port and OBD Fault Erro Code?
HTB1UdUfNXXXXXXuXVXXq6xXFXXXS
144503_pinout -
